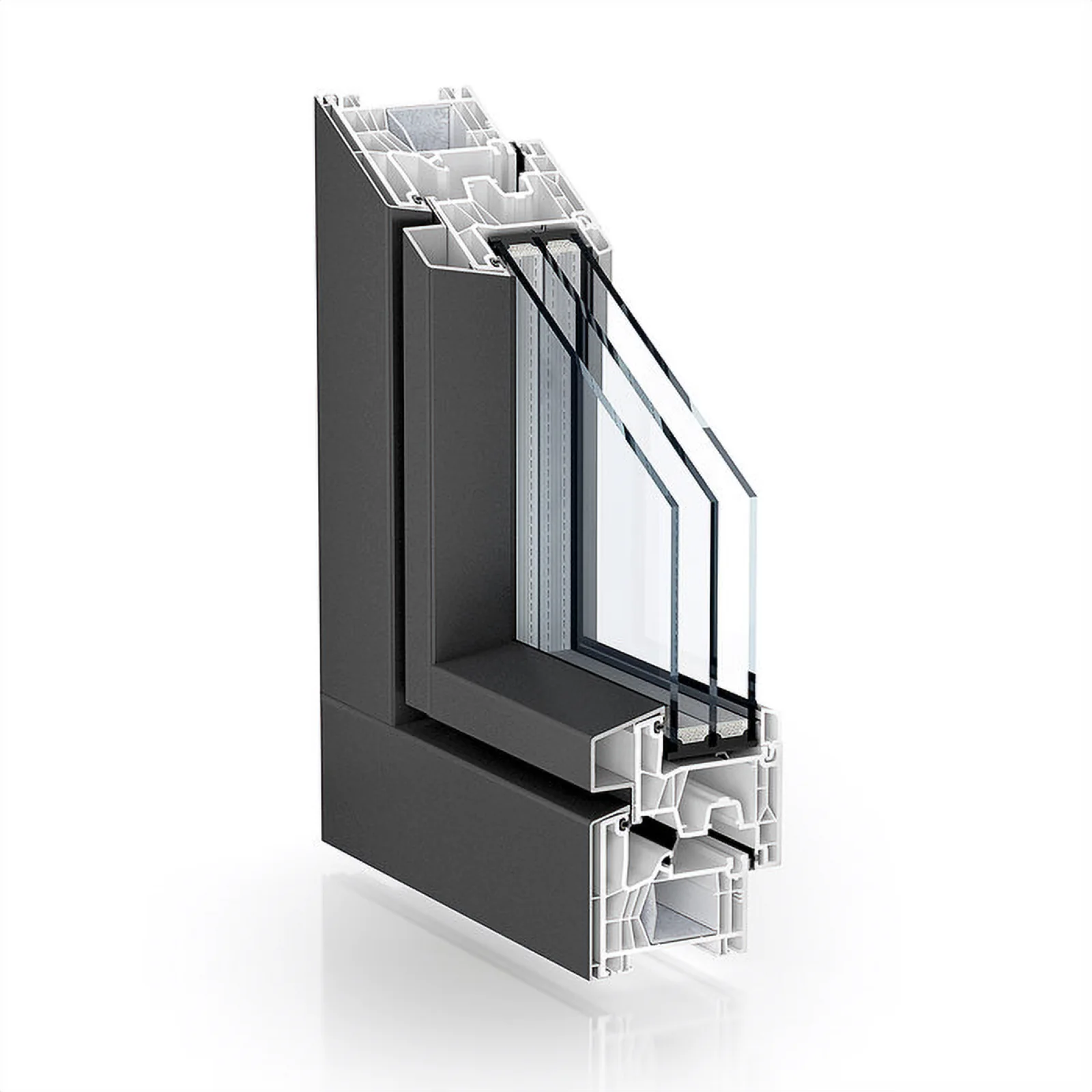

Corner section of the PVC AluClip Pro profile

Corner section of the profile

Kömmerling, PVC-aluminium

PVC AluClip Pro

PVC with aluminium outer cladding

German system for windows and French doors, available for the Kömmerling 76 AD, 76 MD and 88 MD profiles. An aluminium outer shell that makes the sash even more durable and gives it the modern look of aluminium. Galvanised steel reinforcements and co-extruded EPDM gaskets. Glazing up to 56 mm; pictured in RAL anthracite grey outside.

  • 1.1Uf W/m²K
  • 56mm max glazing
  • 3base systems

Data sheet

Thermal insulation
Uf down to 1.1 W/m²K
Glazing thickness
up to 56 mm, triple too
Depth
81.5 mm with the cladding
Exterior
anodised or powder-coated aluminium
Sash
no steel reinforcement
Base systems
Kömmerling 76 AD, 76 MD and 88 MD

Values declared by the system manufacturer. Final performance depends on configuration and glazing.

How we work

Quote

Send us measurements, drawings or the bill of quantities through the form, by email or on WhatsApp. We reply with a fast, detailed quote, calculated for the specific project.

Delivery

Standard delivery for PVC windows is 4 weeks from the order, while for aluminium and wood windows it is 6-8 weeks.

Payment

50% deposit with the order and the remaining 50% when the goods are ready, before loading is arranged.

Warranty

The warranty on the profiles is 5 years and on the hardware 3 years, counted from delivery of the order to the client.
