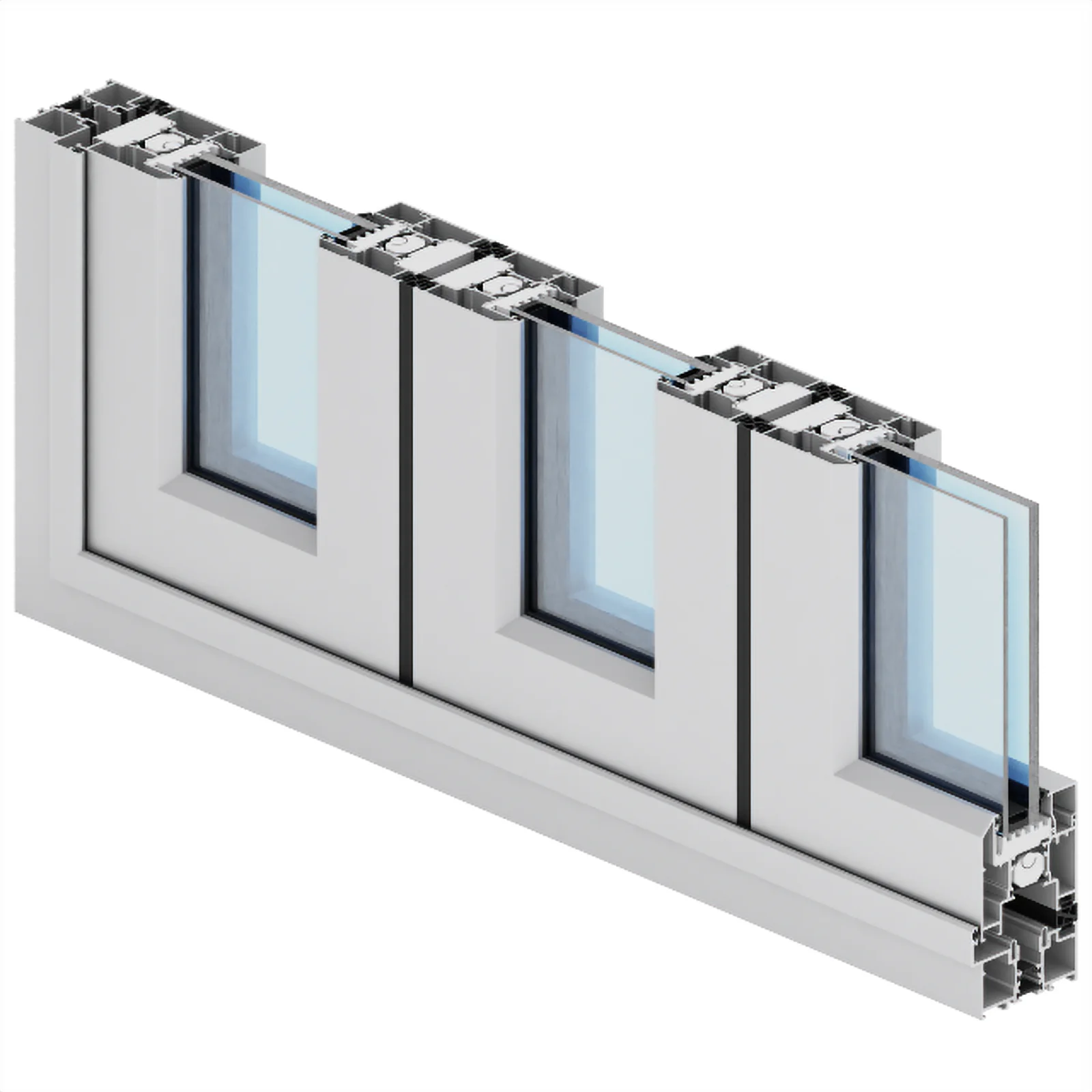

Corner section of the Aliplast Panorama profile

Corner section of the profile

Aliplast, Aluminium

Aliplast Panorama

Thermally broken folding door

Belgian thermally broken system for bi-fold openings, 74.5 mm deep. A flush, recessed low threshold is available for new builds. High thermal insulation, ideal for public and residential buildings. Slim profiles, opening inwards or outwards. Double co-extruded EPDM gasket, leaves up to 100 kg. Glazing up to 50 mm; pictured in RAL light grey.

  • 1.33Uf W/m²K (i+)
  • 100kg per leaf
  • 50mm max glazing

Data sheet

Thermal insulation
Uf from 1.68 W/m²K, from 1.33 in the i+ version
Glazing thickness
from 16 to 50 mm
Leaf weight
up to 100 kg
Depth
74.5 mm frame and sash
Combinations
2+1, 3+2, 3+3 leaves
Threshold
flat with brush or sealed, also recessed low
Air permeability
Class 2, EN 12207
Watertightness
E1050, EN 12208
Wind resistance
C1, EN 12210

Values declared by the system manufacturer. Final performance depends on configuration and glazing.

How we work

Quote

Send us measurements, drawings or the bill of quantities through the form, by email or on WhatsApp. We reply with a fast, detailed quote, calculated for the specific project.

Delivery

Standard delivery for PVC windows is 4 weeks from the order, while for aluminium and wood windows it is 6-8 weeks.

Payment

50% deposit with the order and the remaining 50% when the goods are ready, before loading is arranged.

Warranty

The warranty on the profiles is 5 years and on the hardware 3 years, counted from delivery of the order to the client.
