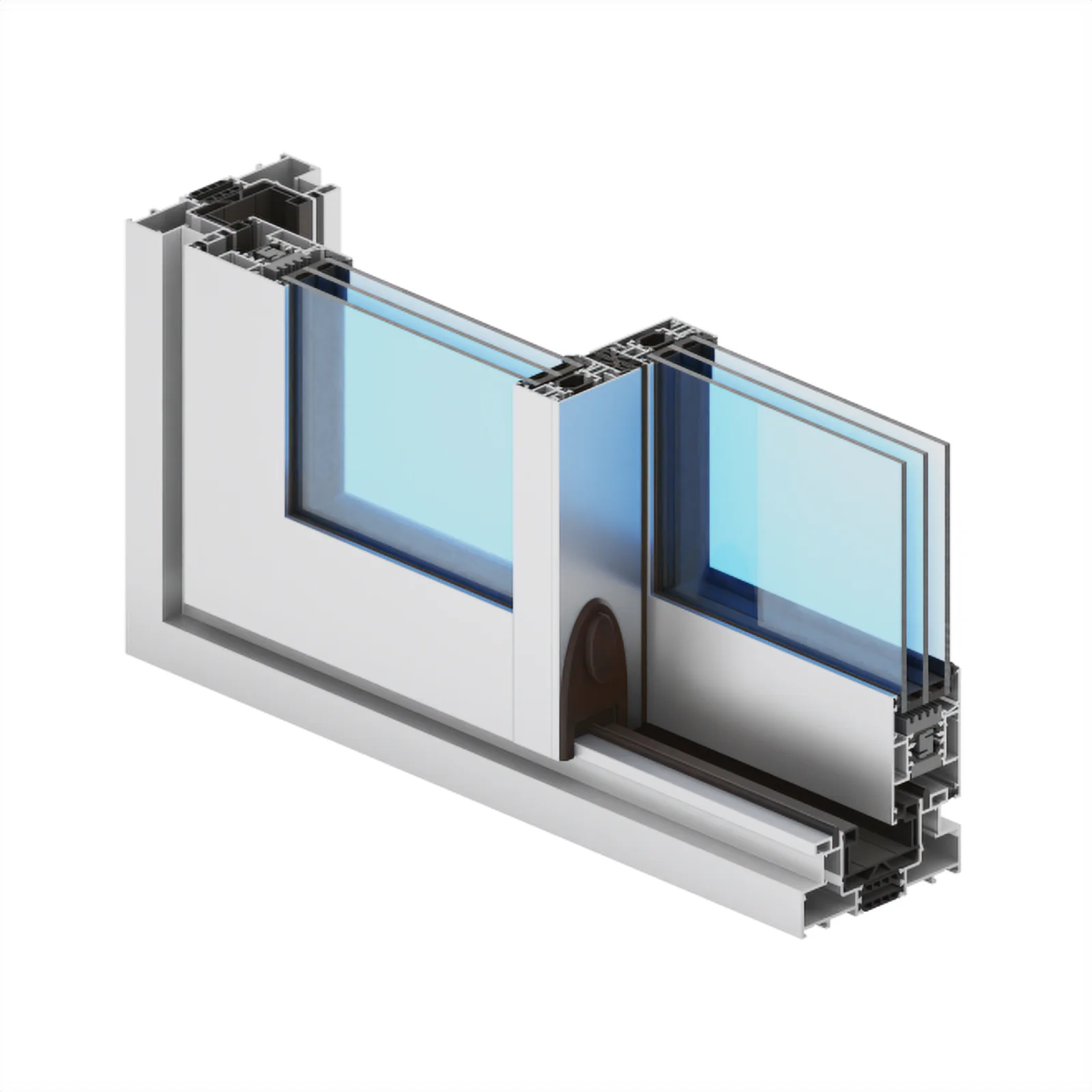

Corner section of the Aliplast Visoglide Plus profile

Corner section of the profile

Aliplast, Aluminium

Aliplast Visoglide Plus

Thermally broken sliding door

Belgian thermally broken system for in-line sliding doors, 118 mm deep. High thermal insulation, ideal for public and residential buildings. Leaves up to 250 kg. Glazing up to 36 mm; pictured in RAL light grey.

  • 2.1Uf W/m²K
  • 250kg per leaf
  • 9Awatertightness

Data sheet

Thermal insulation
Uf from 2.1 W/m²K
Air permeability
Class 4, EN 12207
Wind resistance
C3/B4, EN 12210
Watertightness
9A, EN 12208
Leaf weight
up to 250 kg
Maximum size
3000 × 2500 mm
Glazing thickness
up to 36 mm
Depth
118 mm

Values declared by the system manufacturer. Final performance depends on configuration and glazing.
