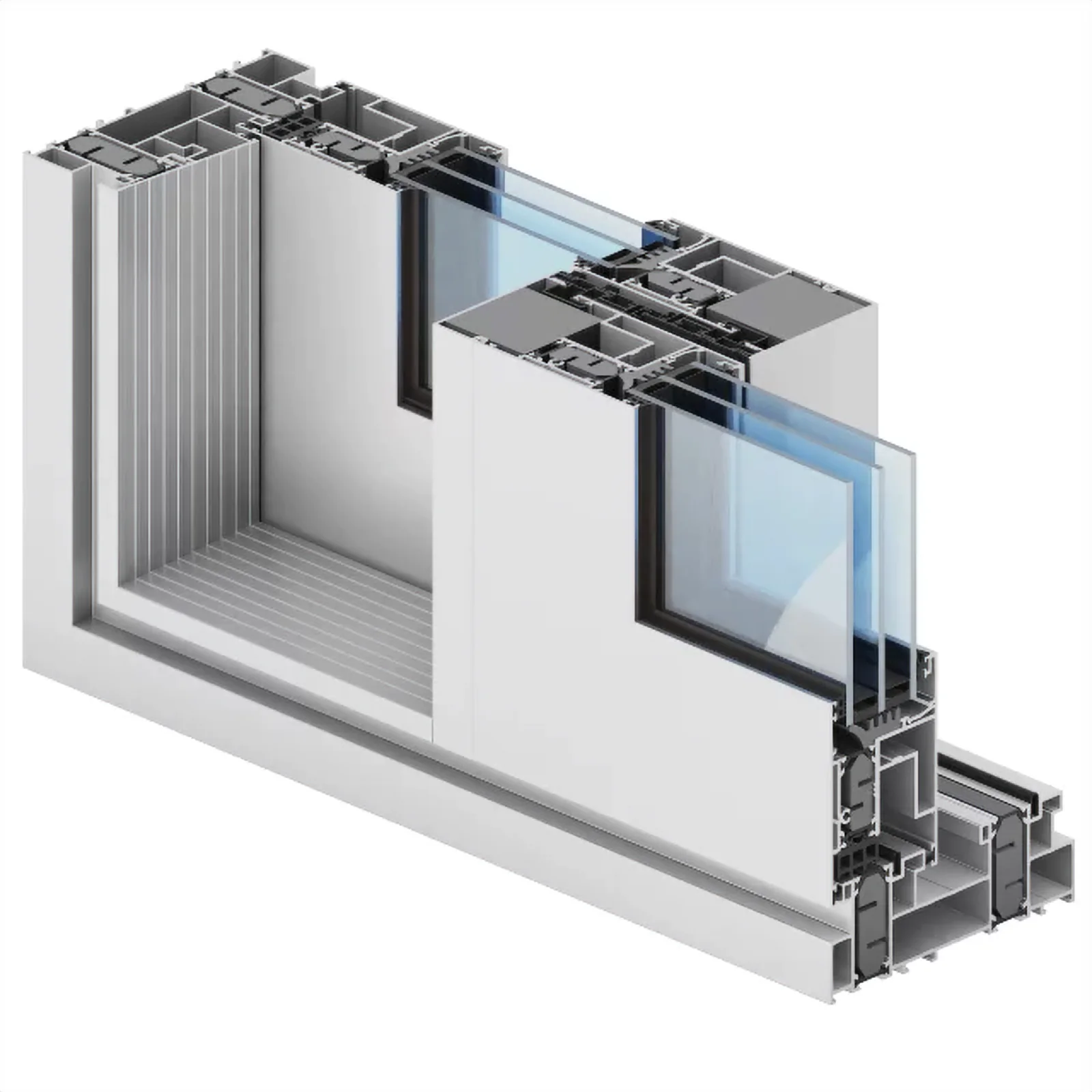

Corner section of the Aliplast Ultraglide profile

Corner section of the profile

Aliplast, Aluminium

Aliplast Ultraglide

Lift-and-slide door with low threshold

Belgian thermally broken system for lift-and-slide doors, up to 239 mm deep. A flush, recessed low threshold is available for new builds. High thermal insulation, ideal for public and residential buildings. Double co-extruded EPDM gasket, leaves up to 400 kg and a maximum height of 2550 mm. Glazing up to 67 mm; pictured in RAL light grey.

  • 400kg per leaf
  • 3.85m wide
  • 67mm max glazing

Data sheet

Leaf weight
up to 400 kg
Maximum size
3850 × 2550 mm
Glazing thickness
up to 67 mm
Frame depth
from 153 to 239 mm
Sash depth
67 mm
Threshold
low, recessed flush for new builds too
Gaskets
double co-extruded EPDM gasket

Values declared by the system manufacturer. Final performance depends on configuration and glazing.

How we work

Quote

Send us measurements, drawings or the bill of quantities through the form, by email or on WhatsApp. We reply with a fast, detailed quote, calculated for the specific project.

Delivery

Standard delivery for PVC windows is 4 weeks from the order, while for aluminium and wood windows it is 6-8 weeks.

Payment

50% deposit with the order and the remaining 50% when the goods are ready, before loading is arranged.

Warranty

The warranty on the profiles is 5 years and on the hardware 3 years, counted from delivery of the order to the client.
